End-Suction Centrifugal Pumps

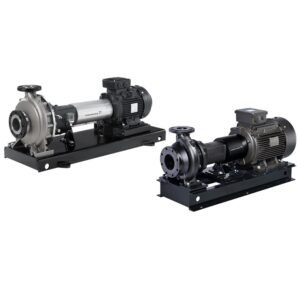

Grundfos NBE Electronic End-Suction Centrifugal Pump
SKU: GF-NBE-SERIES
Intelligent close-coupled end-suction centrifugal pump built to EN 733. Features integrated frequency converter and permanent magnet MGE motor with IE5 Ultra-Premium efficiency for dynamic flow demand.
Rated Flow
365 m³/h (10 – 450 m³/h)
Rated Head
51 m (up to 100 m)
Motor Output
Permanent Magnet MGE with VFD (IE5 Ultra-Premium)
Temperature
-20°C to +120°C
Max Pressure
25 bar (2.5 MPa)
Material MOC
Cast Iron (EN-GJL-250) / AISI 304 & 316 SS
Engineering Technical Data
Target Industrial Applications & Duty Requirements
Boiler Feedwater Systems
Delivers constant high pressure against steam boiler backpressure, handling hot condensate without seal cavitation.
Reverse Osmosis (RO) Feed
Smooth pulsation-free feed pressure required by industrial RO membrane batteries for process demineralization.
Clean-in-Place (CIP) Loops
High-pressure chemical rinse loops in pharmaceutical, chemical synthesis, and food processing plants across Boisar MIDC.
Cooling Towers & Chiller Loops
Continuous circulation through industrial heat exchangers, cooling towers, and HVAC plant loops.
DKE : Engineering & Genuine Spares Support
Dattakrupa Enterprises maintains an inventory of authentic Grundfos HQQE mechanical shaft seal kits, O-ring gasket sets, and replacement pump impellers locally in Boisar. Our factory-trained field engineers provide on-site laser alignment, vibration baseline testing, and emergency seal replacement to ensure zero unbudgeted plant downtime across Boisar and Tarapur MIDC.
